#include <time.h>
#include <ctype.h>
#include <stdio.h>
#include <stdlib.h>
#include <stddef.h>
#include <string.h>
#include "CLEPUTL.h"
#include "FLAMCLP.h"
#include "CLPMAC.h"

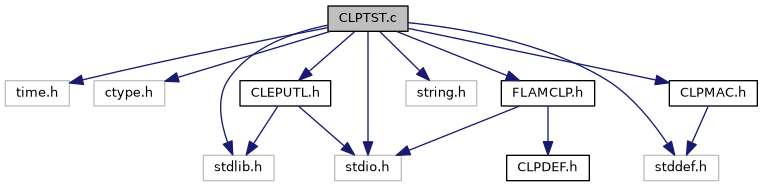

Include dependency graph for CLPTST.c:

Go to the source code of this file.

Macros
#define	DEFINE_STRUCT

#define	NUMTEST_TABLE

#define	FLTTEST_TABLE

#define	ALLTYPES_TABLE

#define	OVERLAY_TABLE

#define	TEST_TABLE

#define	LOG_TABLE

#define	MAIN_TABLE

#define	STRUCT_NAME TsNumTypes

#define	STRUCT_NAME TsFltTypes

#define	STRUCT_NAME TsAllTypes

#define	STRUCT_NAME TuOverlay

#define	STRUCT_NAME TsTst

#define	STRUCT_NAME TsLog

#define	STRUCT_NAME TsMain

Typedefs
typedef C08	string5[5]

typedef struct NumTypes	TsNumTypes

typedef struct FltTypes	TsFltTypes

typedef struct AllTypes	TsAllTypes

typedef union Overlay	TuOverlay

typedef struct Tst	TsTst

typedef struct Log	TsLog

typedef struct Main	TsMain

Functions
	CLPCONTAB_OPN (asSelect)

int	main (int argc, char *argv[])

Variables
TsClpArgument	asClpNumTypes []

TsClpArgument	asClpFltTypes []

TsClpArgument	asClpAllTypes []

TsClpArgument	asClpOverlay []

TsClpArgument	asClpTst []

TsClpArgument	asClpLog []

TsClpArgument	asMainArgTab []

Detailed Description

LIMES Command Line Parser (FLAMCLP) in ANSI-C

Author: Falk Reichbott

Date: 27.02.2013

Copyright: (c) 2013 limes datentechnik gmbh www.flam.de This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software.

Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.
Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.
This notice may not be removed or altered from any source distribution.

Definition in file CLPTST.c.

Macro Definition Documentation

◆ ALLTYPES_TABLE

#define ALLTYPES_TABLE

Value:

   CLPARGTAB_SKALAR ("SWT"     ,   siSwitch,        I08, 1,  1, CLPTYP_SWITCH, CLPFLG_NON,0xF, NULL         , "0x00", NULL, "Switch to set 0xf")           \
   CLPARGTAB_SKALAR ("NUMTYPES", stNumTypes, TsNumTypes, 0,  1, CLPTYP_OBJECT, CLPFLG_NON,  1, asClpNumTypes, NULL, NULL, "All kind of numbers")         \
   CLPARGTAB_SKALAR ("FLTTYPES", stFltTypes, TsFltTypes, 0,  1, CLPTYP_OBJECT, CLPFLG_NON,  2, asClpFltTypes, NULL, NULL, "All kind of floats")          \
   CLPARGTAB_SKALAR ("STR09"   ,   siStrLen,        I16, 0,  1, CLPTYP_NUMBER, CLPFLG_SLN,  3, NULL         , NULL, NULL, "16 bit integer for strlen")   \
   CLPARGTAB_STRING ("STR09"   ,      acStr,          9, 0,  1, CLPTYP_STRING, CLPFLG_NON,  4, asSelect     , NULL, NULL, "String with 8 chars")         \
   CLPARGTAB_SKALAR ("BIN32"   ,   uiBinLen,        U32, 0,  1, CLPTYP_NUMBER, CLPFLG_TLN,  5, NULL         , NULL, NULL, "32 bit integer for binlen")   \
   CLPARGTAB_STRING ("BIN32"   ,      acBin,         32, 0,  1, CLPTYP_STRING, CLPFLG_BIN,  6, NULL         , NULL, NULL, "Binary with 32 byte")         \
   CLPARGTAB_SKALAR ("NUM4L"   ,   siNumCnt,        I32, 0,  1, CLPTYP_NUMBER, CLPFLG_CNT,  7, NULL         , NULL, NULL, "32 bit integer for numcnt")   \
   CLPARGTAB_ARRAY  ("NUM4L"   ,   aiNumLst,        I32, 0,  4, CLPTYP_NUMBER, CLPFLG_NON,  8, NULL         , NULL, NULL, "Number array with 4 integer") \
   CLPARGTAB_SKALAR ("STR45"   ,   siStrCnt,        U16, 0,  1, CLPTYP_NUMBER, CLPFLG_CNT,  9, NULL         , NULL, NULL, "16 bit integer for strcnt")   \
   CLPARGTAB_ARRAY  ("STR45"   ,   acStrLst,    string5, 0,  4, CLPTYP_STRING, CLPFLG_FIX, 10, NULL         , NULL, NULL, "String with 8 chars")         \
   CLPARGTAB_SKALAR ("BIN8L"   ,   siBinCnt,        I08, 0,  1, CLPTYP_NUMBER, CLPFLG_CNT, 11, NULL         , NULL, NULL, "8 bit integer for bincnt")    \
   CLPARGTAB_ARRAY  ("BIN8L"   ,   aiBinLen,        I08, 0,  8, CLPTYP_NUMBER, CLPFLG_ELN, 12, NULL         , NULL, NULL, "Length array for 8 binaries") \
   CLPARGTAB_STRING ("BIN8L"   ,   acBinLst,         64, 0,  8, CLPTYP_STRING, CLPFLG_BIN, 13, NULL         , NULL, NULL, "Binary with 64 bytes")        \
   CLPARGTAB_CLS

Definition at line 62 of file CLPTST.c.

◆ DEFINE_STRUCT

#define DEFINE_STRUCT

Definition at line 38 of file CLPTST.c.

◆ FLTTEST_TABLE

#define FLTTEST_TABLE

Value:

   CLPARGTAB_SKALAR("FLT32", flFlt32, F32, 0, 1, CLPTYP_FLOATN, CLPFLG_NON, 1, NULL    , NULL/*"123.456"*/, NULL, "Float with 32 bit") \
   CLPARGTAB_SKALAR("FLT64", flFlt64, F64, 0, 1, CLPTYP_FLOATN, CLPFLG_SEL, 2, asSelect, NULL/*"PI"*/     , NULL, "Float with 64 bit") \
   CLPARGTAB_CLS

Definition at line 54 of file CLPTST.c.

◆ LOG_TABLE

#define LOG_TABLE

Value:

CLPARGTAB_SKALAR ("DUMMY", uiDummy, I32, 0, 1, CLPTYP_NUMBER, CLPFLG_NON, 1, NULL, NULL, NULL, "Just a dummy") \

CLPARGTAB_CLS

Definition at line 106 of file CLPTST.c.

◆ MAIN_TABLE

#define MAIN_TABLE

Value:

   CLPARGTAB_SKALAR("INPUT" , stInp, TsTst, 0, 1, CLPTYP_OBJECT, CLPFLG_NON, 1, asClpTst, NULL, NULL, "Struture to define inbound parameter")  \
   CLPARGTAB_SKALAR("OUTPUT", stOut, TsTst, 0, 1, CLPTYP_OBJECT, CLPFLG_NON, 2, asClpTst, NULL, NULL, "Struture to define outbound parameter") \
   CLPARGTAB_SKALAR("LOG"   , stLog, TsLog, 0, 1, CLPTYP_OBJECT, CLPFLG_NON, 3, asClpLog, NULL, NULL, "Struture to define log parameter")      \
   CLPARGTAB_CLS

Definition at line 113 of file CLPTST.c.

◆ NUMTEST_TABLE

#define NUMTEST_TABLE

Value:

   CLPARGTAB_SKALAR("NUM08", uiNum08, U08, 1, 1, CLPTYP_NUMBER, CLPFLG_NON, 1, NULL    , "23"  , NULL, "Number with 8 bit" ) \
   CLPARGTAB_SKALAR("NUM16", siNum16, I16, 0, 1, CLPTYP_NUMBER, CLPFLG_SEL, 2, asSelect, "NUM3", NULL, "Number with 16 bit") \
   CLPARGTAB_SKALAR("NUM32", uiNum32, U32, 1, 1, CLPTYP_NUMBER, CLPFLG_NON, 3, NULL    , ""    , NULL, "Number with 32 bit") \
   CLPARGTAB_ALIAS( "NUGO6", "NUM32") \
   CLPARGTAB_ALIAS( "HUGO2", "NUM32") \
   CLPARGTAB_SKALAR("NUM64", siNum64, I64, 0, 1, CLPTYP_NUMBER, CLPFLG_NON, 4, asSelect, "NUM2", NULL, "Number with 64 bit") \
   CLPARGTAB_CLS

Definition at line 41 of file CLPTST.c.

◆ OVERLAY_TABLE

#define OVERLAY_TABLE

Value:

   CLPARGTAB_SKALAR ("SWT", siSwt,        I16, 0, 1, CLPTYP_SWITCH, CLPFLG_NON, 1,          NULL, NULL, NULL, "Switch to set 0xf")             \
   CLPARGTAB_STRING ("STR", acStr,         33, 0, 1, CLPTYP_STRING, CLPFLG_NON, 2,          NULL, NULL/*"'FALK'"*/, NULL, "String with 33 chars")          \
   CLPARGTAB_SKALAR ("ALL", stAll, TsAllTypes, 0, 1, CLPTYP_OBJECT, CLPFLG_NON, 3, asClpAllTypes, NULL, NULL, "All kind of types (overlay)")   \
   CLPARGTAB_SKALAR ("NUM", stNum, TsNumTypes, 0, 1, CLPTYP_OBJECT, CLPFLG_NON, 4, asClpNumTypes, NULL, NULL, "All kind of numbers (overlay)") \
   CLPARGTAB_SKALAR ("FLT", stFlt, TsFltTypes, 0, 1, CLPTYP_OBJECT, CLPFLG_NON, 5, asClpFltTypes, NULL/*"FLT"*/, NULL, "All kind of floats (overlay)")  \
   CLPARGTAB_CLS

Definition at line 82 of file CLPTST.c.
